Frequency controller up to 5A 115/230V
Different IP from IP00 to IP54, with or without display
Request quotation

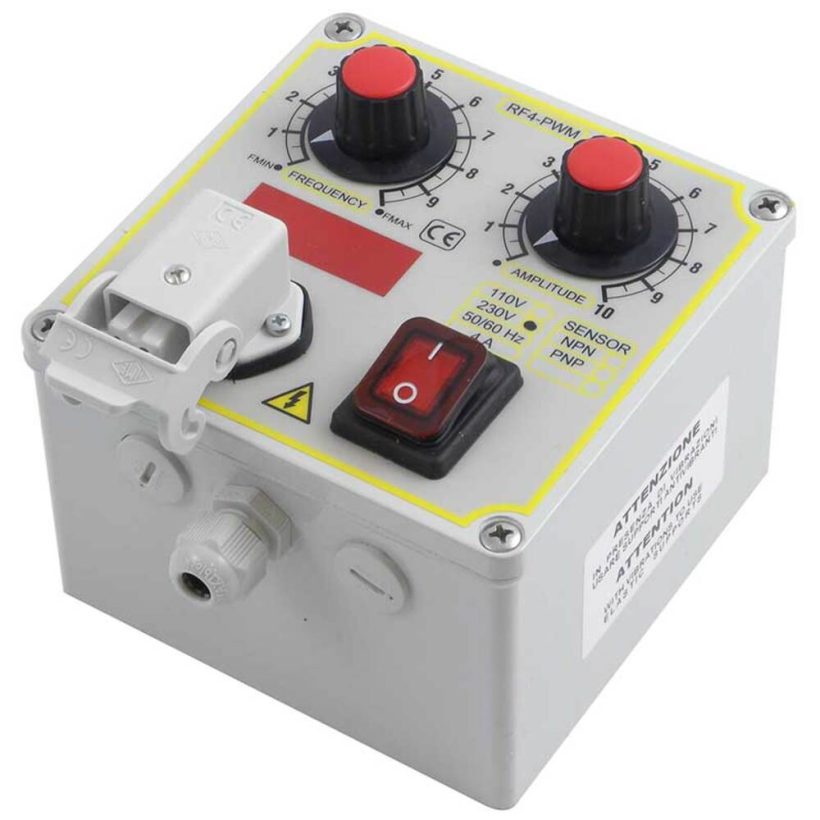

RF4PWM is a frequency controller up to 5A. It is compact and easy-to-use, available in different configuration, with or without dispaly.
Application: Conveyor and assembly automation in packaging and dosing industry. Linear vibrating feeder and vibratory bowl feeder up to 5A. Perfect for markets with different Hz without mechanical tuning.
| Max Output Current [A] | 5 |
|---|---|
| Input Voltage [V] | 80-250 |
| Vibration Frequency [Hz] | 30-130 |
| Output Voltage [V] | 0-200 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0-3 |
| ON/OFF | 0-24V, Dry contact |
| Automatic Input PLC | 0-10V/4-20mA |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum, DIN35 |
| Protection Index [IP] | IP20, IP55 |
| Standard Conformity | CE, EMC, Rohs |
| Overflow Control | PNP/NPN/24V/Dry Contact |
| T_on/T_off/T_Alarm | 0-6/0-6/0-12 |
| Switch Off Time Air-Valve [s] | 0-2 |
| Display | yes, no |
| Potentiometer | yes, no |
| File Name | Visualize | Download |
|---|---|---|
| SP_RF4-PWM_ENG_2020 | ||
| SP_RF4-PWM-N_ENG_2020 |
