Compact phase angle controller for light industry 4A with input from PLC
Request quotation

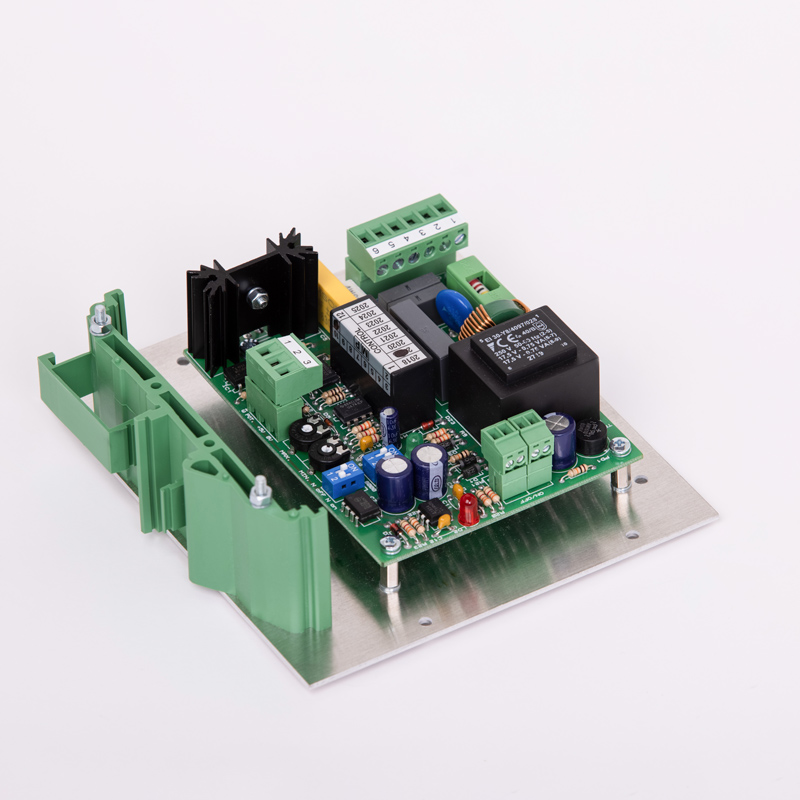

R4FC is a compact and easy-to-use phase angle controller. The maximum current is 4 A. Automatic input 0-10V or 4-20mA.
Application: Conveyor and assembly automation in packaging and dosing industry. Small linear vibrating feeder and vibratory bowl feeder
| Max Output Current [A] | 5 |
|---|---|
| Input Voltage [V] | 230 |
| Vibration Frequency [Hz] | 50/100 |
| Output Voltage [V] | 40-210 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0.2, 2 |
| ON/OFF | 0-24V, Dry contact |
| Automatic Input PLC | 0-10V/4-20mA |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum, Circuit, DIN35, DIN35 Circuit, Metal, Plastic, REM Aluminium |
| Protection Index [IP] | IP00, IP20, IP55, IP65 |
| Standard Conformity | CE, EMC, Rohs |
| File Name | Visualize | Download |
|---|---|---|
| SP_R4FC_ENG_2020 |
