Phase angle controller at 8A 230V or 400V.
Possibility to add amplitude sensor to check the vibration.
Request quotation

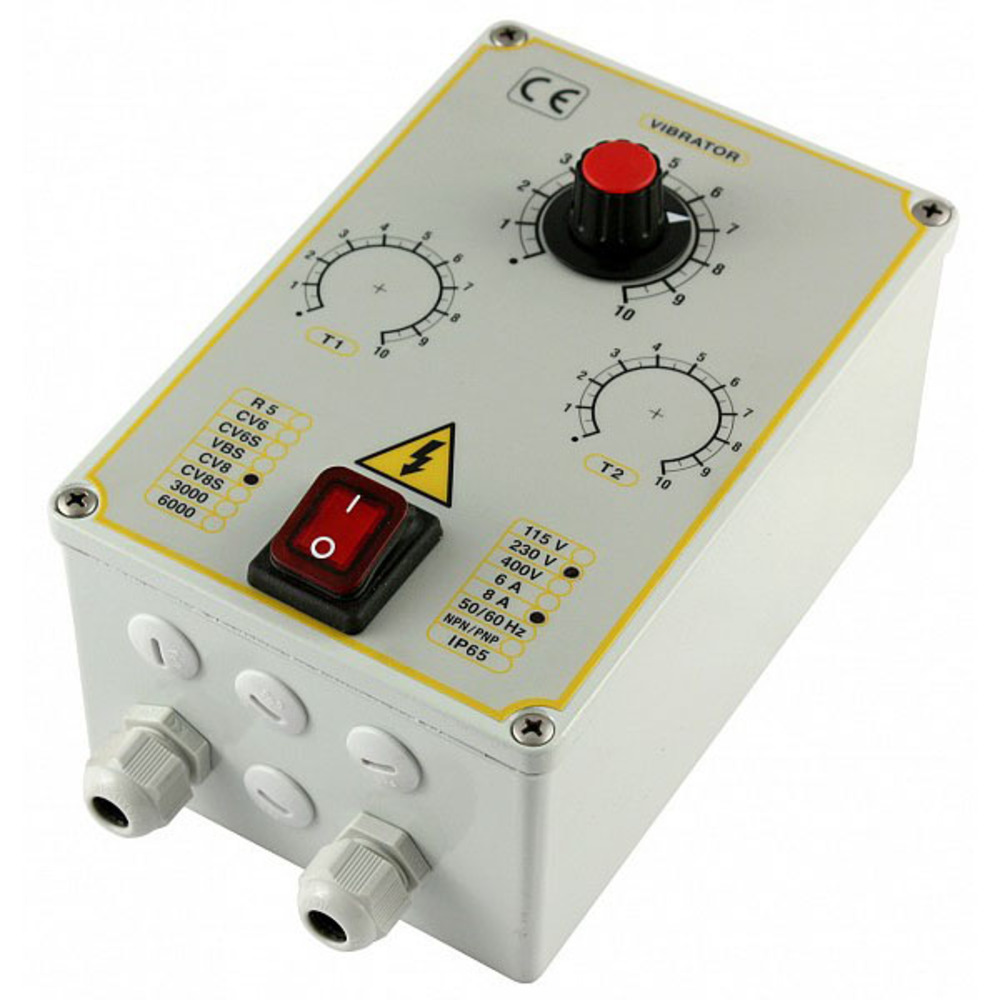

CV8 is a professional phase angle controller, 8A. It also has automatic input 0/10V 4/20mA from PLC and a double insulation to avoid interferences from external signals. There is also the possibility of having an amplitude sensor to keep the vibration constant without spikes (model CVFS).
Application: Conveyor and assembly automation in packaging and dosing industry. Perfect if you need precise dosing (CV8S or CV8FS) or in working envoirment with interferences (CV ISO-17)
| Max Output Current [A] | 8 |
|---|---|
| Input Voltage [V] | 230, 400 |
| Vibration Frequency [Hz] | 30-130, 5-140, 50/100, 50/100 or 60/120 |
| Output Voltage [V] | 40-210 or 100-380 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0.1, 1 |
| ON/OFF | 0-24V, Dry contact |
| Automatic Input PLC | 0-10V/4-20mA |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum, Circuit, DIN35 Circuit, Plastic |
| Protection Index [IP] | IP00, IP20, IP55 |
| Standard Conformity | CE, EMC, Rohs |
| Amplitude Sensor | No, SInd2 |
| File Name | Visualize | Download |
|---|---|---|
| SP_CV6_8-17_ENG_2020 | ||
| SP_CV6-8_ENG_2020 | ||
| SP_CV6FS-8FS_ENG_2020 | ||
| SP_CV6S-8S_ENG_2020 |
