Description
MTR01 Series controller has been designed to drive 230 / 400V single-phase-three-phase motorized belts or elevators.
MTR

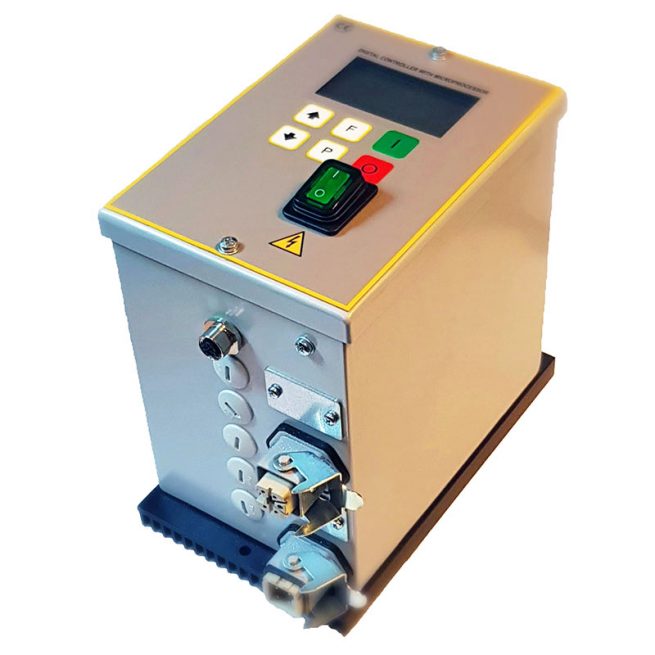

Controller for 3 Phase Motor-driven feeders
Request quotation
Additional information
| Input Voltage [V] | 115, 115/230, 115/230/400, 230, 230/400, 400, 400 3-phase, 500, 80-250, up to 500 |
|---|---|
| Output Voltage [V] | 0-200, 100-380, 115/230/400 3-phase, 130-480, 20-105, 20-105 or 40-210, 40-210, 40-210 or 100-380, 400 3-phase |
| Stabilized vs Input Voltage | Yes |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum, Circuit, DIN35, DIN35 Circuit, Metal, Plastic, REM Aluminium |
| Protection Index [IP] | IP00, IP20, IP55, IP65 |
| Standard Conformity | CE, EMC, Rohs |
| Overflow Control | PNP/24V/Dry Contact |
| T_on/T_off/T_Alarm | 0-12/0-12/0-25 |
| Switch Off Time Air-Valve [s] | 2 |
Documents
| File Name | Visualize | Download |
|---|---|---|
| SP_MTR01_ENG_2020 | ||
| SP_MTR01-DIG_ENG_2020 |
