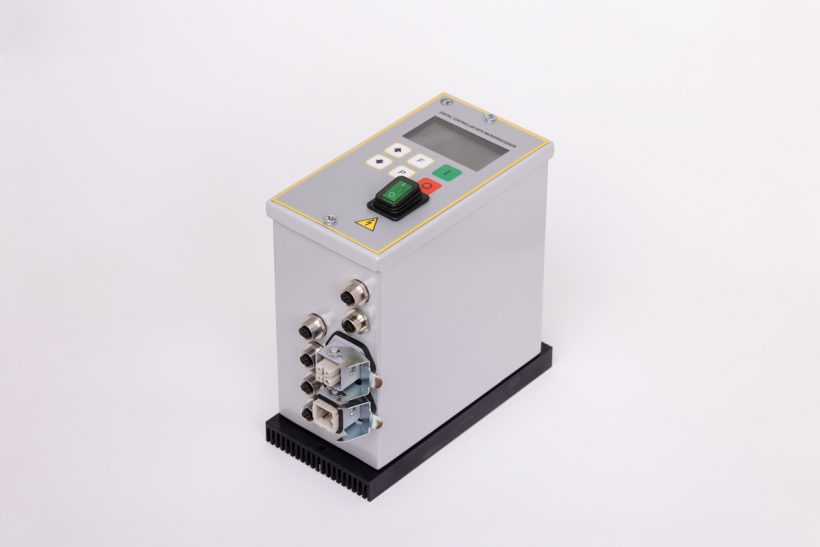

Controller for system that includes one, two or three channels included hopper, bowl and linear feeder
Request quotation
MCP Series is a phase angle controllers that can drive up to 3 channels.
These devices have a user-friendly interface thanks to the graphic display, all the parameter can be set by the keypad.
Application: It can be used for systems composed by one, two or three channels such as hopper, vibratory bowl feeder and linear vibrating feeders.
| Max Output Current [A] | 10, 12 (6-8-6), 12 (8-10) |
|---|---|
| Input Voltage [V] | 80-250 |
| Vibration Frequency [Hz] | 50/100 or 60/120 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0-10 |
| ON/OFF | 0-24V, Dry contact |
| Automatic Input PLC | 0-10V/4-20mA |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum |
| Protection Index [IP] | IP55 |
| Standard Conformity | CE, EMC, Rohs |
| Overflow Control | PNP/24V/Dry Contact |
| T_on/T_off/T_Alarm | 0-30/0-30/10-120 |
| Switch Off Time Air-Valve [s] | 0-2 |
| Channels | 1, 2, 3 |
| File Name | Visualize | Download |
|---|---|---|
| SP_MCP01-02_ENG_2020 | ||
| SP_MCP03_ENG_2020 |
